Remote Calls

There are multiple ways (middlewares) to implement remote calls in distributed systems:

• Sockets TCP/IP
• Remote Method Invocation (RMI) - Java RMI
• Remote Procedure Call (RPC) - Google RPC (gRPC)

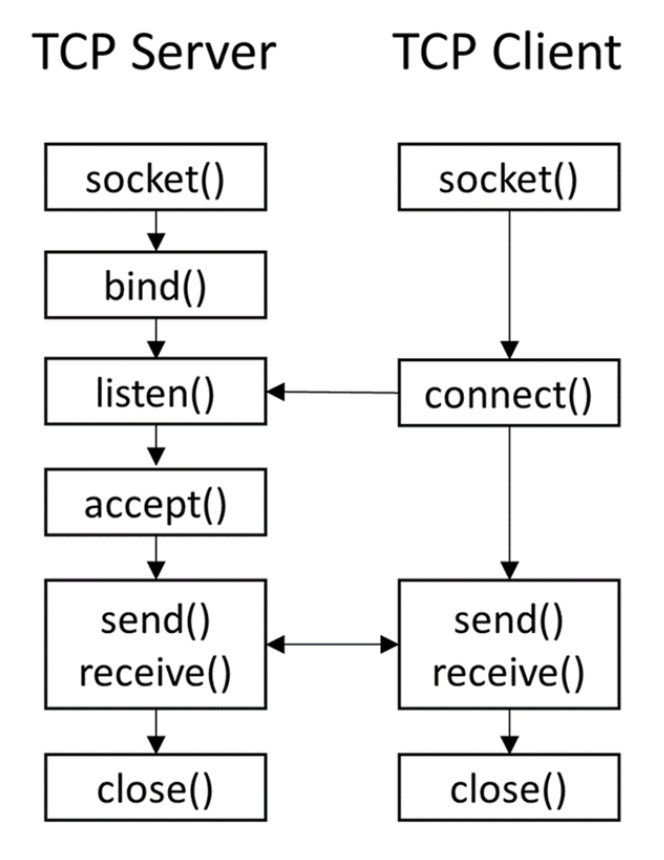

Sockets TCP/IP

• TCP is a connection oriented protocol that allows two hosts to establish a connection and exchange streams of data;
  • One host is the client and the other is the server;
  • The server is always listening for connections and the client initiates the connection;
• Once the connection is established, the client and server can exchange data, in a reliable way, through streams in both directions, until the connection is closed;
• To allow the existence of multiple connections, (IP Address, Port) pairs are used to identify the connections;

Note: In Java, the Socket class represents a socket and the ServerSocket class represents a server socket. This classes are implemented in the java.net package.

Other useful classes:

• InetSocketAddress - Represents a socket address (IP address + port number) for the Socket and ServerSocket classes;
• BufferedReader - Reads text from a character-input stream, buffering characters so as to provide for the efficient reading of characters, arrays, and lines;
• PrintWriter - Prints formatted representations of objects to a text-output stream.

Example of Client and Server

public class Client {
  public static void main(String[] args) throws Exception {
    Socket socket = new Socket(args[0], Integer.parseInt(args[1])); // IP server, port
    PrintWriter out = new PrintWriter(socket.getOutputStream(), true); // autoFlush
    BufferedReader in = new BufferedReader(new InputStreamReader(socket.getInputStream()));
    out.println("Hello World!");
    System.out.println(in.readLine());
    socket.close();
  }
}

The server must create a concurrent thread for each connection:

public class Server {
  public static void main(String[] args) throws Exception {
    ServerSocket serverSocket = new ServerSocket(Integer.parseInt(args[0])); // port
    ExecutorService executor = Executors.newFiexedThreadPool(5);
    int sessionId = 0;
    while (true) {
      Socket socket = serverSocket.accept();
      Runnable worker = new Worker(socket, sessionId++);
      executor.execute(worker);
    }
  }
}

public class Session implements Runnable {
  private Socket socket;
  private int sessionId;
  private BufferedReader in;
  private PrintWriter out;

  public Session(Socket socket, int sessionId) {
    this.socket = socket;
    this.sessionId = sessionId;
    try {
      this.in = new BufferedReader(new InputStreamReader(socket.getInputStream()));
      this.out = new PrintWriter(socket.getOutputStream(), true); // autoFlush
    } catch (IOException e) {
      e.printStackTrace();
    }
  }

  @Override
  public void run() {
    try {
      String line = in.readLine();
      System.out.println("Session " + sessionId + ": " + line);
      out.println("Echo: " + line);
      socket.close();
    } catch (IOException e) {
      e.printStackTrace();
    }
  }
}

Conclusions

• The concurrency in the server must be explicit, and handled by the programmer;
• The protocol to exchange data depend on the stream of data, and implies the use of a serialization mechanism, like XML or JSON;
• Due to the existence of other middlewares with higher abstraction levels, this approach is not very common nowadays.
